Brother QL-820NWB
- The Brother QL-820NWB is a professional desktop label printer designed for high-volume event badge production, featuring direct thermal printing, automatic cutter, and versatile connectivity.
- From Brother's official specifications, it uses a 300 dpi thermal head (720 dots) capable of standard 300x300 dpi resolution or high-resolution 300x600 dpi mode, with maximum printing speeds of 176 mm/sec (AC) or 110 labels/minute – ideal for rapid check-in queues.
Printer Technical Details :
Specification | Details |
Printing Method | Direct thermal (no ink required) |
Resolution | 300 x 300 dpi (standard); 300 x 600 dpi (high-res mode) |
Print Speed | 176 mm/sec (AC); 110 labels/min; 24 mm/sec (2-color mode) |
Max Print Width | 58 mm (supports up to 62 mm rolls) |
Connectivity | Wi-Fi |
Dimensions & Weight | 125 x 234 x 145 mm (W x D x H); 1.16 kg |
Memory | 6 MB (255 locations); supports image/template upload from PC |

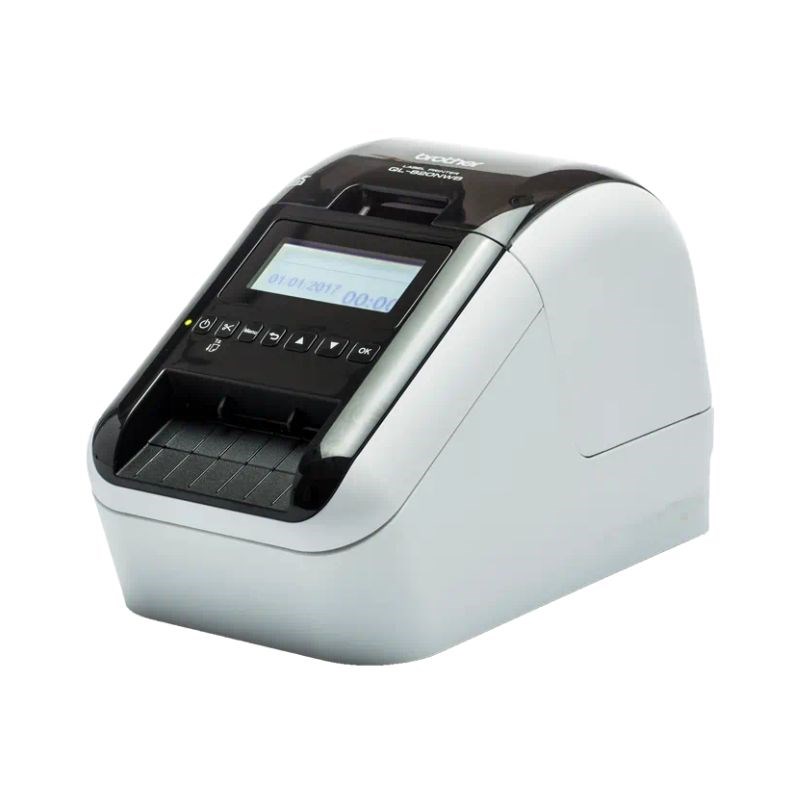

Visual Reference: Picture a compact glossy black/white unit with front-loading roll tray, top LCD display, cutter slot, and rear connectivity ports – as shown in Brother datasheets for easy desk placement at events.
Label Roll Details: DK-22205 :
- Requires continuous self-adhesive thermal paper rolls.
- Brother DK-22205 Endless Labels (Black on White) are specifically recommended: 62 mm width x 30.48 m length, designed for die-cut or continuous printing up to 1 meter labels.
- From Brother Store product page: Continuous labels – black on white for sharp text, logos, and QR codes without fading; compatible Generic Compatible Dk-22205 Label Roller Brother, 62 mm x 30.48 M
- Roll Specs: Width: 62 mm; Length: 30.48 m; Core: 25 mm; Material: Thermal paper (self-adhesive).
- Loading: Insert roll with labels facing up.
- Capacity: Prints thousands of badges per roll; cutter trims to exact size matching app preview.
Purchase Options :
Brother Official: DK-22205 – "High-quality continuous labels for QL printers"
Amazon: Compatible DK-22205 – Reviews confirm perfect fit, no jams.
Klarna: Brother DK Tape – Bulk options for events.
